ΣC2600U
ΣC2600U
Digital Speaker Management Processor

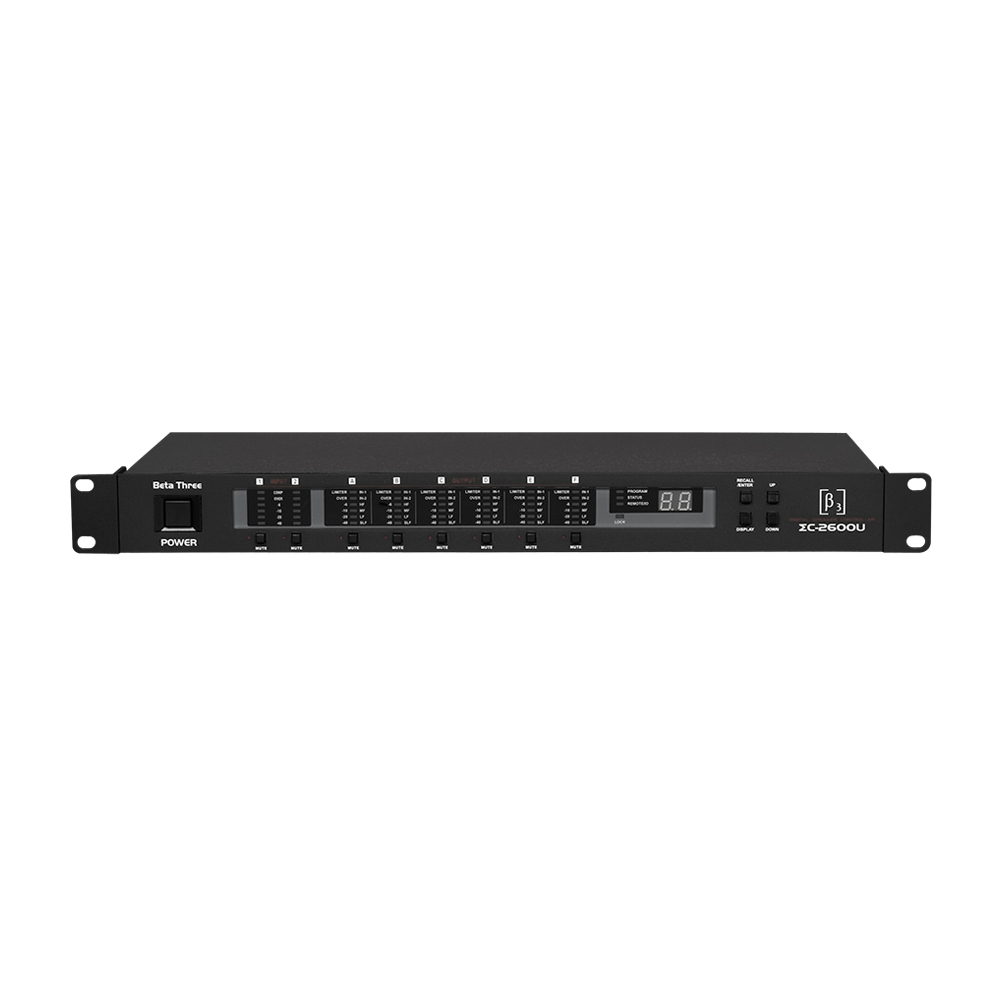

The ΣC2600U is a 1U integrated speaker management processor. This device is easily programmable to meet all installation applications.
ΣC2600U
Digital Speaker Management Processor
The ΣC2600U is a 1U integrated speaker management processor. This device is easily programmable to meet all installation applications.
Features
- Integrated speaker management processor
- Three-way stereo or six-way mono crossover
- 32 bit floating point DSP and digital filter
- 2 x input XLRs + 6 x Output XLRs + 2 x RS485 XLR + USB + 1 x 6.35mm socket (BGM signal)
- Software programmable via PC (USB port)
- Provides input selection, gain control, delay, crossover, equalization and limiter functions
- DSP – 64kHz sample rate with 24bit AD/DA processing
- Front panel input and output LED indicators
- Store up to 20 presets
Specifications:
Input Connector
2 x Balanced XLR, 1 x RS485, 1 x USB + 1 x 6.35mm
Output Connector
6 x Balanced XLR, 1 x RS485
Input Impedance
Balanced10kΩ
Maximum Output Levels
+20dBu
A/D Sampling Rate
64kHz, 24bit linear
Frequency Response (±0.3dB)
20Hz-20kHz(+0.3/-0.3dB), 10Hz-30khz(+0.3/-3.0dB)
THD + N
<0.006%
S/N Ratio (A weight)
110dB (A Weight)
Dynamic Range (A weight)
≥107dB
Power Supply
AC 110V-120V~, 50/60Hz
Dimensions (W x D x H)
483mm (19”) x 228mm (10”) x 45mm (1.8”)
Net Weight (1 piece/pack)
4.7kg (10.4lb)
Gross Weight (1 piece/pack)
6.3kg (13.9lb
