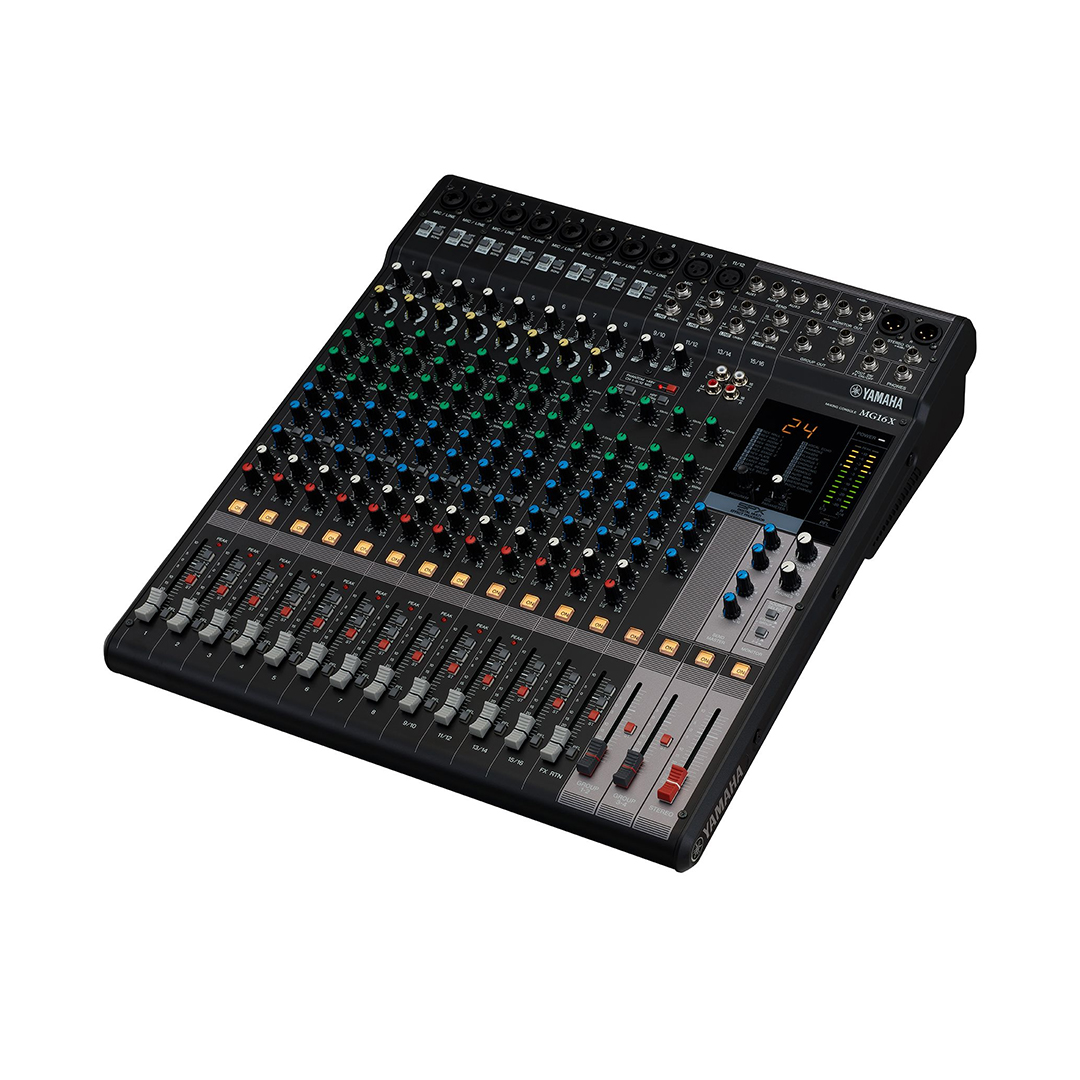

| Outline |
| Mixing capability |
On-board processors |
SPX algorithm: 24 programs, PARAMETER control:1, FOOT SW:1 (FX RTN CH on/off) |
| I/O |
Phantom power |
+48 V |
| Digital I/O |
– |
| Input Channels |
Mono[MIC/LINE] |
8 |
| Mono/Stereo[MIC/LINE] |
2 |
| Stereo[LINE] |
2 |
| Output Channels |
STEREO OUT |
2 |
| MONITOR OUT |
1 |
| PHONES |
1 |
| AUX SEND |
4 |
| GROUP OUT |
4 |
| Bus |
Stereo: 1, GROUP: 4, AUX: 4 (incl. FX) |
| Input Channel Function |
PAD |
26 dB (Mono) |
| HPF |
80 Hz, 12 dB/oct (Mono/Stereo: MIC only) |
| COMP |
1-knob compressor (Gain/Threshold/Ratio) Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB Attack time: approx. 25 msec, Release time: approx. 300 msec |
| EQ HIGH |
Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving |
| EQ MID |
Gain: +15 dB/-15 dB, Frequency: Mono 250 Hz – 5 kHz peaking, Stereo 2.5 kHz peaking |
| EQ LOW |
Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving |
| PEAK LED |
LED turns on when post EQ signal reaches 3 dB below clipping |
| Level Meter |
2×12 -segment LED meter [PEAK, +10, +6, +3, 0, -3, -6, -10, -15, -20, -25, -30 dB] |
| General specifications |
| Total harmonic distortion |
0.03 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.005 % @ +24dBu (1kHz), GAIN knob: Min |
| Frequency response |
+0.5 dB/-1.5 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min |
| Hum & noise level |
Equivalent input noise |
-128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max) |
| Residual output noise |
-102 dBu (STEREO OUT, STEREO master fader: Min) |
| Crosstalk |
-78 dB |
| Power requirements |
AC 100 – 240 V, 50 / 60 Hz |
| Power consumption |
30 W |
| Dimensions |
W |
444 mm (17.5″) |
| H |
130 mm (5.1″) |
| D |
500 mm (19.7″) |
| Net weight |
6.8 kg (15.0 lbs.) |
| Accessories |
Included Accessory: Owner’s Manual, Technical Specifications, AC power cord, Rack-mount kit, Optional Accessory: Foot Switch FC5 |
| Others |
Operating Temperature: 0 to +40ËšC |
| 0 dBu = 0.775 Vrms Output impedance of signal generator (Rs) = 150Ω
All level controls are nominal if not specified.
Hum & noise level: Noise is measured with A-weighting filter.
Crosstalk： Measured with 1 kHz band pass filter. |
